Breakdown Voltage (BDV) Test: Key Indicator for Transformer Oil Insulation Performance

Transformer Oil Purifier

Breakdown Voltage (BDV) serves as the critical benchmark for evaluating the dielectric performance of transformer oil, which dominates the operational safety of power transformers. Transformer oil acts as both insulation and cooling medium, yet it is prone to moisture absorption, dust deposition, and carbon contamination during long-term service, resulting in declining BDV values and potential equipment faults. Regular BDV testing is indispensable, as it helps identify degraded oil quality in advance and determines whether a professional transformer oil purifier is required to restore the oil’s original insulation performance.

Purpose of BDV Testing

Transformer oil gradually accumulates moisture, particulate impurities and carbon residues during transformer operation, which drastically lowers dielectric strength and BDV level. Severe oil degradation may trigger partial discharge and insulation breakdown, threatening the entire power system. BDV testing accurately quantifies oil insulation conditions and guides maintenance decisions: mildly unqualified oil can be fully recovered via a high-performance transformer oil purifier, while severely deteriorated oil needs replacement to avoid operational risks.

Working Principle of Standard BDV Testing

The BDV test follows unified industry standards with standardized and repeatable detection procedures, as detailed below:

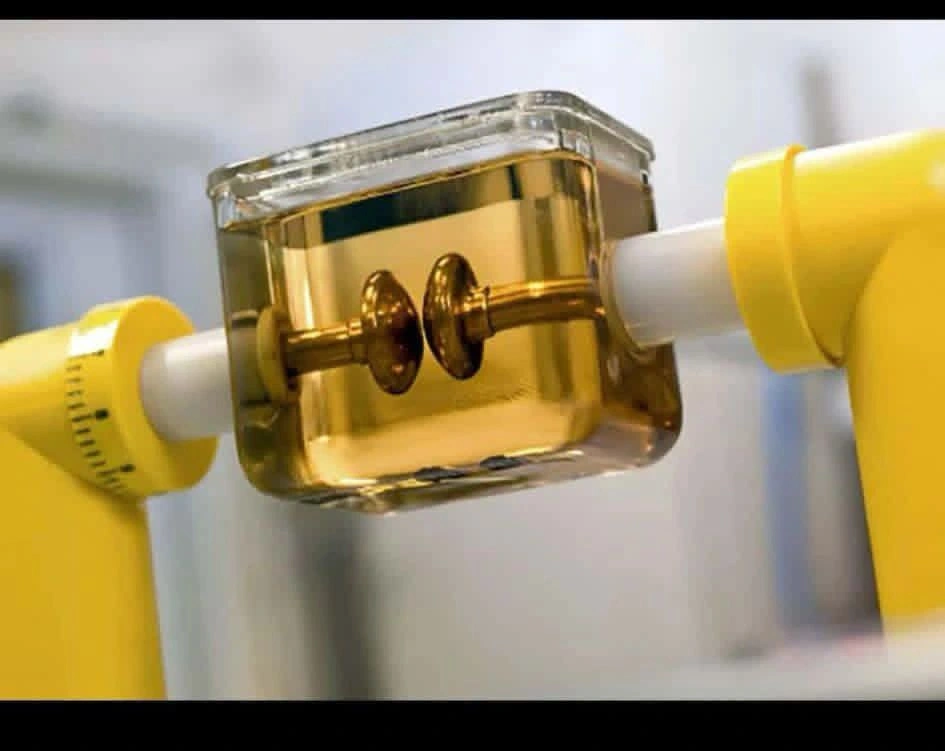

1. Prepare a clean standard test cup and inject a fresh transformer oil sample to avoid external impurity interference.

2. Place two standard electrodes inside the oil sample with a fixed and precise gap distance.

3. Gradually increase the AC high voltage applied between the two electrodes. In the initial stage, the clean oil sample maintains stable insulation and blocks current conduction.

4. When the voltage rises to the critical value that the oil insulation can no longer bear, instantaneous electric spark and arc breakdown will occur between the electrodes.

5. The critical voltage value at the moment of arc generation is defined as the Breakdown Voltage (BDV).

To ensure test accuracy, the experiment needs to be repeated multiple times. The final effective BDV value of the oil sample is obtained by calculating the average of all valid test data, which can truly reflect the overall insulation performance of the transformer oil.

Solve Low BDV Issues Effectively with ZYD Double-Stage Transformer Oil Purifier

Low BDV value is almost exclusively caused by moisture, dissolved gas and fine contaminants in transformer oil. BDV testing only detects oil quality problems, while a professional transformer oil purifier fundamentally resolves low BDV issues and regenerates unqualified insulating oil. Our ZYD series double-stage transformer oil purifier is tailor-made for power industry oil purification, specially designed to eliminate oil pollutants and restore high BDV standards for aged transformer oil.

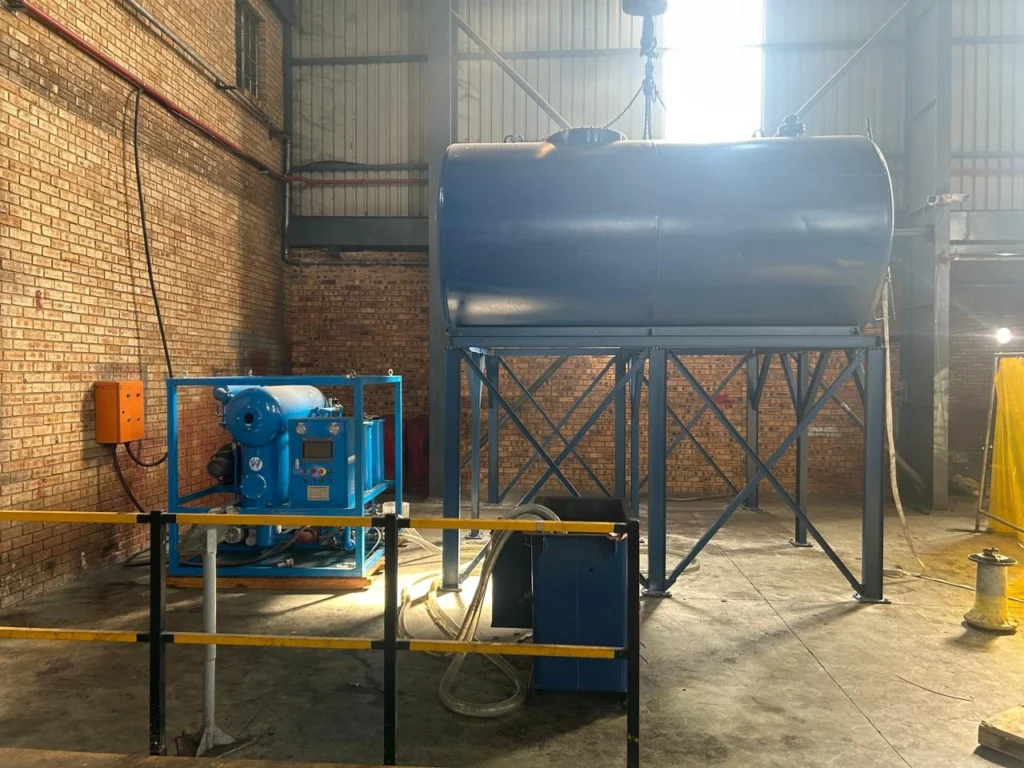

This advanced ZYD double-stage transformer oil purifier adopts dual vacuum chamber technology and stereo thin-film evaporation, far exceeding the purification effect of single-stage equipment. The unique structural design maximizes oil-gas-water separation efficiency, thoroughly removing micro-moisture, residual air and suspended carbon particles that lead to BDV reduction. With stable deep purification capacity, this transformer oil purifier effectively eliminates insulation hidden dangers caused by polluted transformer oil.

Equipped with a multi-stage precision filtration system and intelligent constant-temperature heating system, our transformer oil purifier steadily improves and stabilizes the BDV value of processed oil. After purification by the ZYD double-stage transformer oil purifier, transformer oil can fully comply with international power industry standards. Widely used for on-site maintenance, overhaul and commissioning of high and medium voltage transformers, the equipment ensures long-term stable insulation performance of transformer oil and guarantees safe operation of power facilities.
