IIJ-II-100 Breakdown Oil Tester

Model: IIJ-II-100 Breakdow Oil Tester
Power supply: AC220V ± 10%， 50HZ
Output voltage: 100KV
Capacity: 2.0KVA
Pressure Increase Speed: about 2KV/S
Pressure testing speed: 3%
Dielectric strength sensitivity : <2KV
Wave Form Distortion : ≤3%
Time of Dielectric strength: ≤10ms
Polar Distance: 2.5mm
Operational Environment: Temperature:0℃-40℃, Humidity: the most relative humidity 85%
Storage environment : Temperature:-20℃-60℃, Humidity: the most relative humidity 75%.
Working altitude: <1500m (if over 1500m can be designed specially)
Warranty: 18months

Share to:

Chat Directly with Our Experts

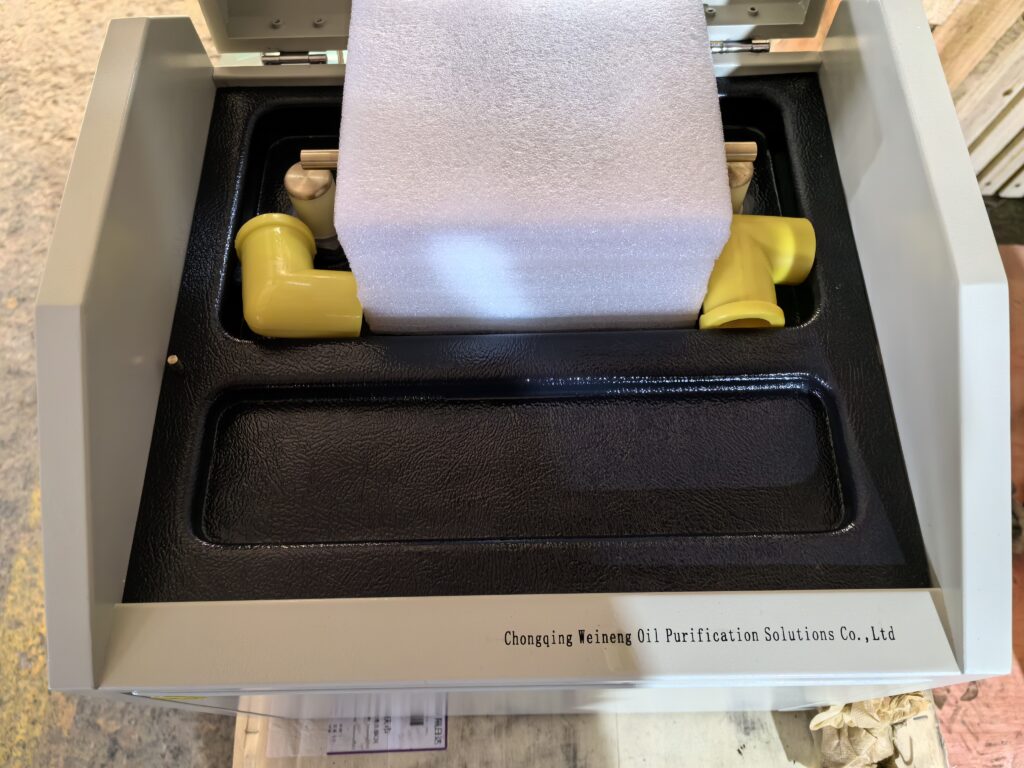

IIJ-II-100 Breakdown Oil Tester

IIJ-II-100 Breakdown Oil Tester is a professional, high-precision instrument designed to measure the dielectric breakdown voltage of insulating oils, primarily used in electrical power systems. It is a crucial device for assessing the health and quality of insulating oil in high-voltage equipment, helping to prevent electrical failures and ensure operational safety. With WEINENG IIJ-II-100 Breakdown Oil Tester, it is a best helper for our ZYD Double Stage Transformer Oil Processing Machine, IIJ-II-100 Breakdown Oil Tester could help you check the oil breakdown results after oil filtration.

Power supply: AC220V ± 10%， 50HZ
Output voltage: 80KV, 100KV
Capacity: 1.6KVA, 2.0KVA
Pressure increase speed :about 2KV/S
Pressure testing speed: 3%
Dielectric strength sensitivity : <2KV
Wave form distortion : ≤3%
Time of dielectric strength: ≤10ms
Polar distance: 2.5mm
Operational environment: Temperature:0℃-40℃, Humidity: the most relative humidity 85%
Storage environment : Temperature:-20℃-60℃, Humidity: the most relative humidity 75%.
Working altitude: <1500m (if over 1500m can be designed specially)

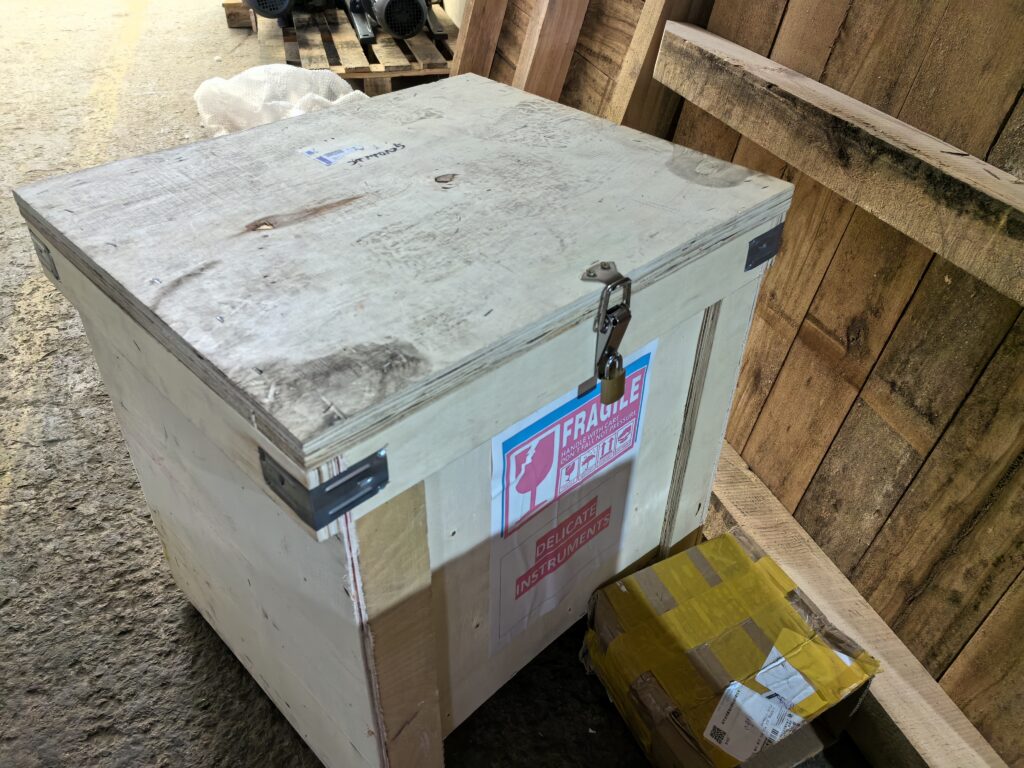

Packing: Wooden Case

High Accuracy & Reliability: Utilizes precise voltage measurement circuits and high-quality components to ensure accurate and repeatable results.

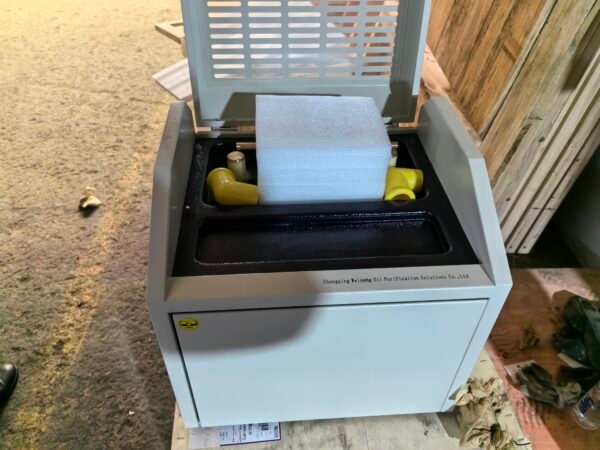

Safety Interlocks: Equipped with safety covers and interlock systems that automatically cut off high voltage when the test chamber is opened, protecting the operator.

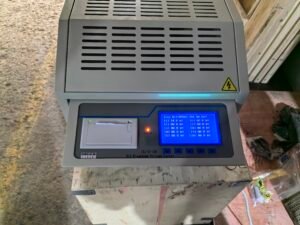

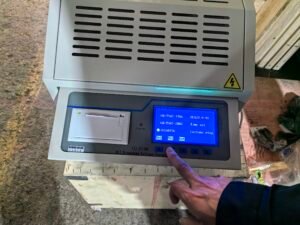

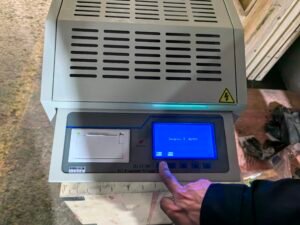

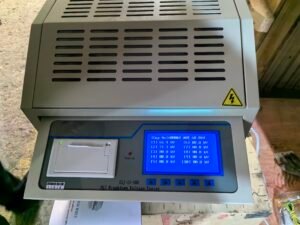

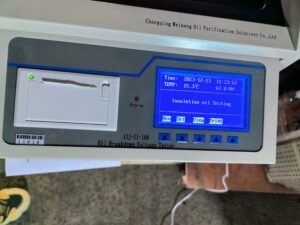

User-Friendly Interface: Features a clear digital display (often an LCD screen) showing the breakdown voltage, test parameters, and results.
Automatic Stirring: Includes a built-in magnetic stirrer or motorized stirrer to homogenize the oil sample before and during testing, ensuring a representative sample is tested.
Compliance with International Standards: The instrument is typically designed to comply with key international test standards such as ASTM D877 and IEC 60156, ensuring that test procedures and results are globally recognized.
Robust Construction: Built with durable materials to withstand the rigors of a laboratory or field service environment.

Prevent Costly Transformer Failures & Downtime
Proactively identify degraded oil quality before it leads to a catastrophic insulation breakdown. Our breakdown voltage tester is your essential tool for predictive maintenance, saving you from expensive repairs and lengthy power outages.
Achieve Uncompromising Accuracy & Compliance
Ensure your insulating oil meets strict international standards (such as ASTM D877 and D1816). The IIJ-II-100 delivers highly repeatable results, giving you complete confidence in your oil quality assessments and compliance reports.
Simplify & Streamline Your Oil Testing Workflow
With its intuitive design and automated testing features, the IIJ-II-100 makes routine oil dielectric strength testing quick and easy. Minimize operator error and free up your skilled technicians for more complex tasks.
Safeguard Your Critical High-Voltage Assets
Regular testing with a reliable oil test set is the most effective way to extend the operational life of your transformers, circuit breakers, and other essential grid equipment. Protect your capital investment with data-driven insights.

WEINENG IIJ-II-100 Breakdown Oil Tester is an essential diagnostic tool in the electrical power industry, used in both field and lab environments to safeguard critical high-voltage assets by ensuring the dielectric integrity of their insulating oil. We Strongly Suggest you our ZYD series double stage transformer oil filtration machine for improving your oil breakdown voltage. Friendly reminder: Contact us now for full oil solution proposal or competitive price!

Contact us now!

Model: IIJ-II-100 Breakdow Oil Tester
Power supply: AC220V ± 10%， 50HZ
Output voltage: 100KV
Capacity: 2.0KVA
Pressure Increase Speed: about 2KV/S
Pressure testing speed: 3%
Dielectric strength sensitivity : <2KV
Wave Form Distortion : ≤3%
Time of Dielectric strength: ≤10ms
Polar Distance: 2.5mm
Operational Environment: Temperature:0℃-40℃, Humidity: the most relative humidity 85%
Storage environment : Temperature:-20℃-60℃, Humidity: the most relative humidity 75%.
Working altitude: <1500m (if over 1500m can be designed specially)
Warranty: 18months
