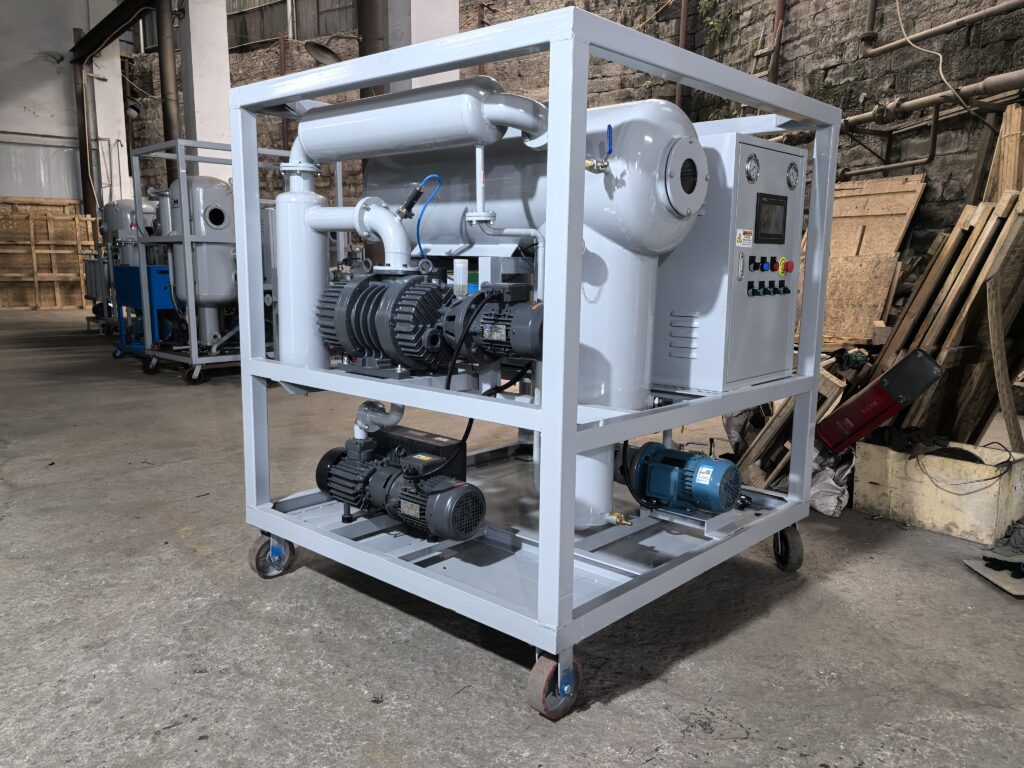

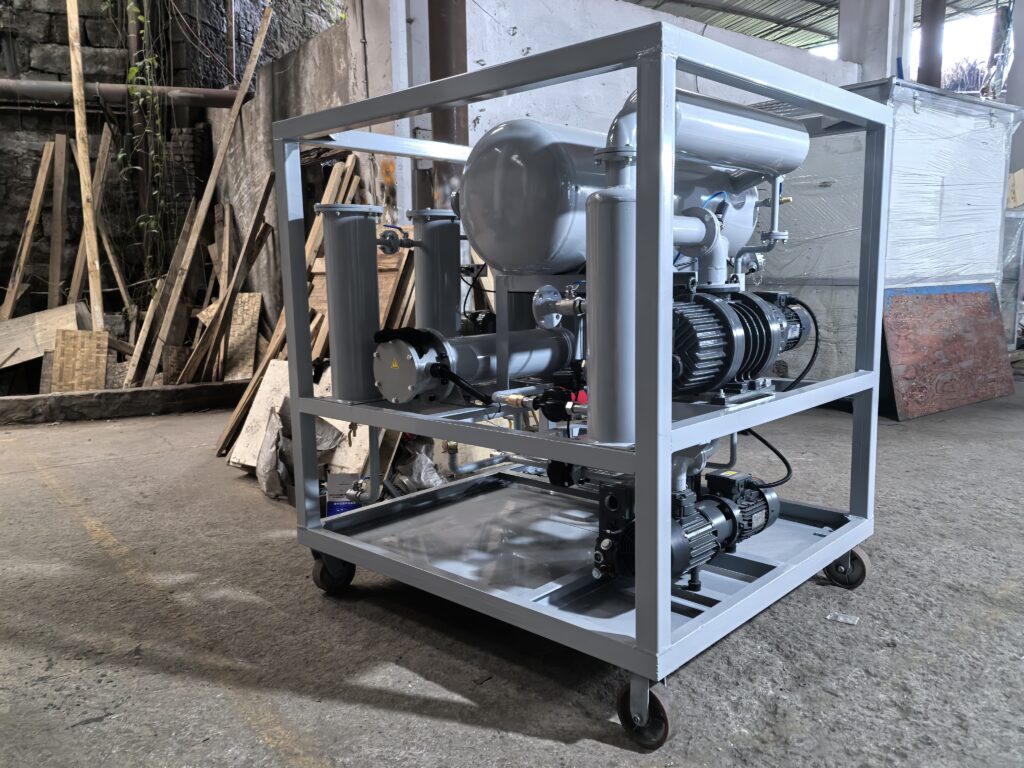

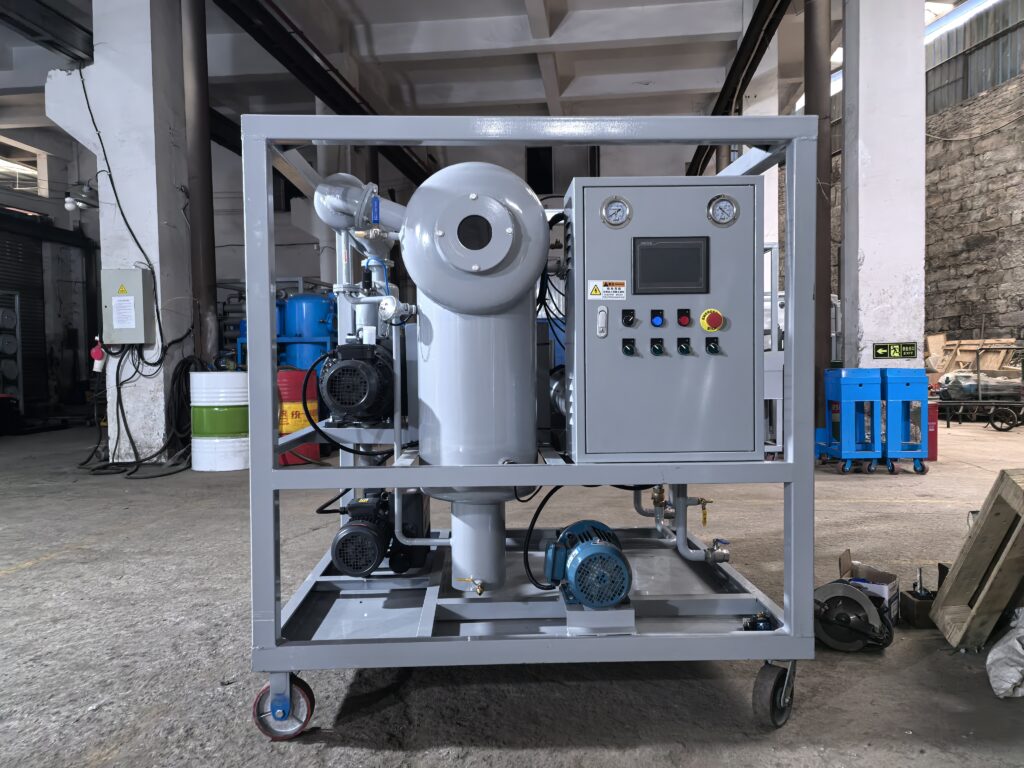

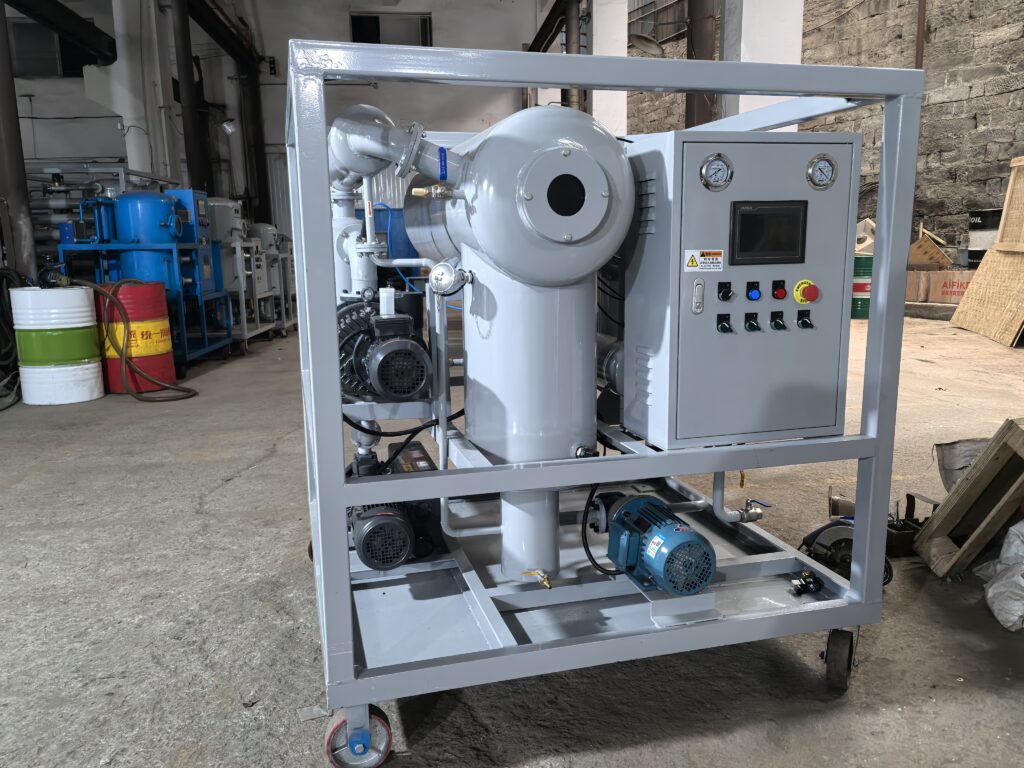

ZYD-30 Double Stage Transformer Oil Treatment Machine

Model: ZYD-30 Double Stage Transformer Oil Treatment Machine
Rated Voltage: 380V, 50HZ, 3Phase(Customizable)
Flow Rate: 30 L/min
Working Vacuum: -0.08 ~ -0.099 MPa
Working Temperature: 40-70°C
Water Content After Treatment: < 5 ppm
Particle Removal Rating: ≤ 3 μm
Noise Level: < 70 dB
Warranty: 18months

Share to:

Chat Directly with Our Experts

ZYD-30 Double Stage Transformer Oil Treatment Machine

ZYD-30 Double Stage Transformer Oil Treatment Machine is a high-performance, PLC-controlled purification system designed for the most critical applications in the power industry. At its core is an advanced double-stage high-vacuum system, capable of achieving an extreme vacuum of below 10 Pa, for the thorough removal of dissolved water, gases, and fine impurities.

This robust machine serves as an all-in-one solution for vital on-site tasks, including:

Purifying heavily contaminated oil.
Vacuum oil filling.
Transformer degassing and evacuation.

ZYD-30 Double Stage Transformer Oil Treatment Machine ensures unmatched reliability for maintaining EHV/UHV transformers and other large-scale power equipment, guaranteeing operational excellence and extended asset life.

Equipped with an advanced dual-stage high-vacuum system, including a Roots pump, for ultra-efficient dehydration and degassing
Capable of achieving extreme vacuum levels under 10pa for thorough removal of dissolved gases and moisture
Three-stage filtration system with high accuracy and precision micro-filters for sub-micron particle removal

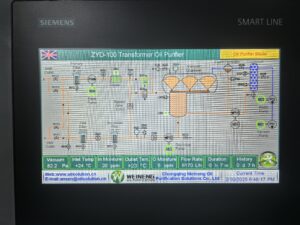

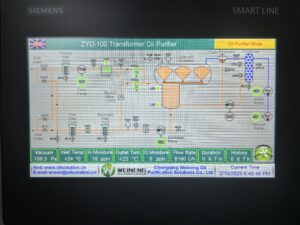

PLC-based automatic control with real-time monitoring of oil temperature, vacuum level, and pressure
Integrated anti-foaming and automatic oil level control systems for safe, continuous operation
Suitable for heavy contamination and critical applications, including EHV/UHV transformers and large power equipment
Functions as an all-in-one unit for purification, vacuum oil filling, drying, and transformer degassing
Designed for robust, 24/7 operation with corrosion-resistant components and energy-efficient performance
Optional parts like ppm sensor, flow meter, waterproof, trailer etc for customized requirements
Waterproof, steel inbox suitable for transformer oil purification on site projects

Eliminate Downtime with Unbreakable Reliability: Keep your most critical EHV/UHV assets online and protected. WEINENG ZYD-30 Double Stage Transformer Oil Treatment Machine ensures your insulating oil meets the strictest standards, preventing costly, unplanned outages and extending transformer life by years.
Slash Operational Costs Through Unmatched Efficiency: The fully automated PLC system and continuous operation capability dramatically reduce labor costs and maintenance cycles, delivering a faster return on investment and a lower total cost of ownership.
Simplify Complex Operations with an All-in-One Platform: Consolidate multiple functions into one robust unit. Execute purification, vacuum oil filling, and transformer degassing on-site with a single machine, streamlining your workflow and reducing equipment investment.
Future-Proof Your Investment with Tailored Solutions: Our customizable options mean the system adapts to your unique site requirements, ensuring you pay only for what you need today, with the flexibility to meet the challenges of tomorrow.

Complete Oil Treatment: Transformer Oil Purifier + Vacuum pumping System

Our transformer oil purifiers clean the oil – our VPS vacuum pumping units dry the transformer tank. Together, they ensure complete moisture protection for your transformers.

Why Pair Them:
