ZYD-20 Transformer Oil Filtration Machine With PALL Housing + PALL Filters

Model: ZYD-20 Transformer Oil Filtration Machine
Rated Voltage: 400V, 50HZ, 3Phase(Customizable)
Flow Rate: 20 L/min
Working Vacuum: -0.08 ~ -0.099 MPa
Working Temperature: 40-70°C
Water Content After Treatment: < 5 ppm
Particle Removal Rating: ≤ 3 μm
Breakown Voltage: ≥75kv
Noise Level: < 70 dB
Warranty: 18months

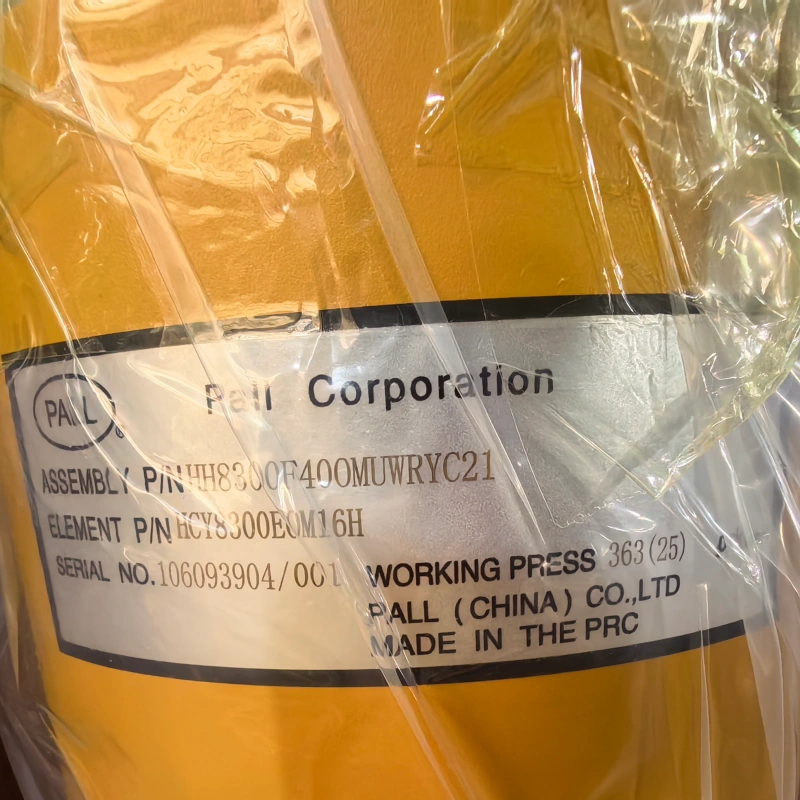

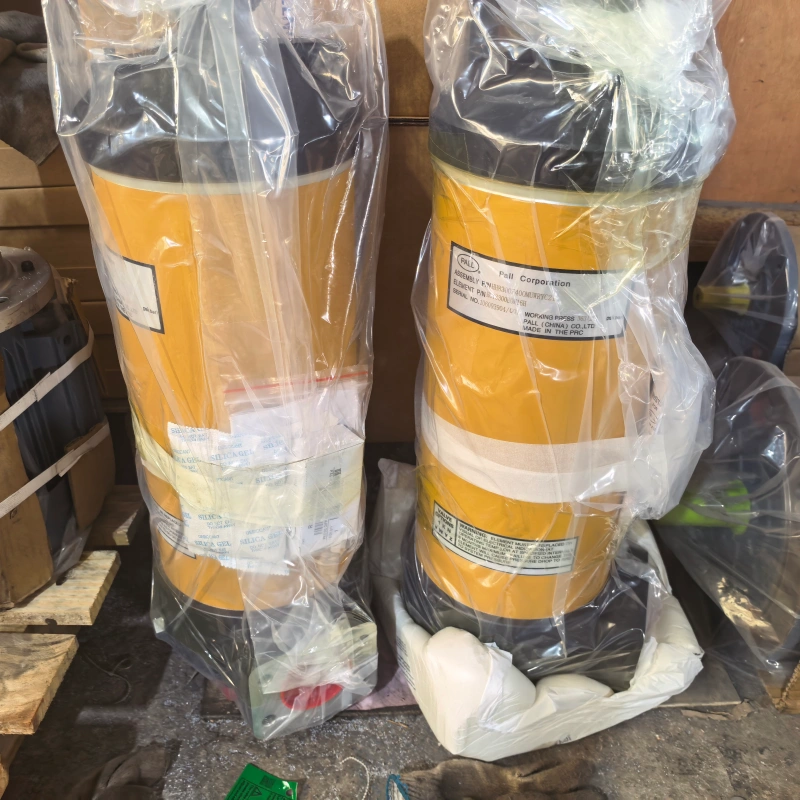

PALL Filter Elements: HC8314FRN16Z, HC8314FRR16Z, HCY8300EOM16H

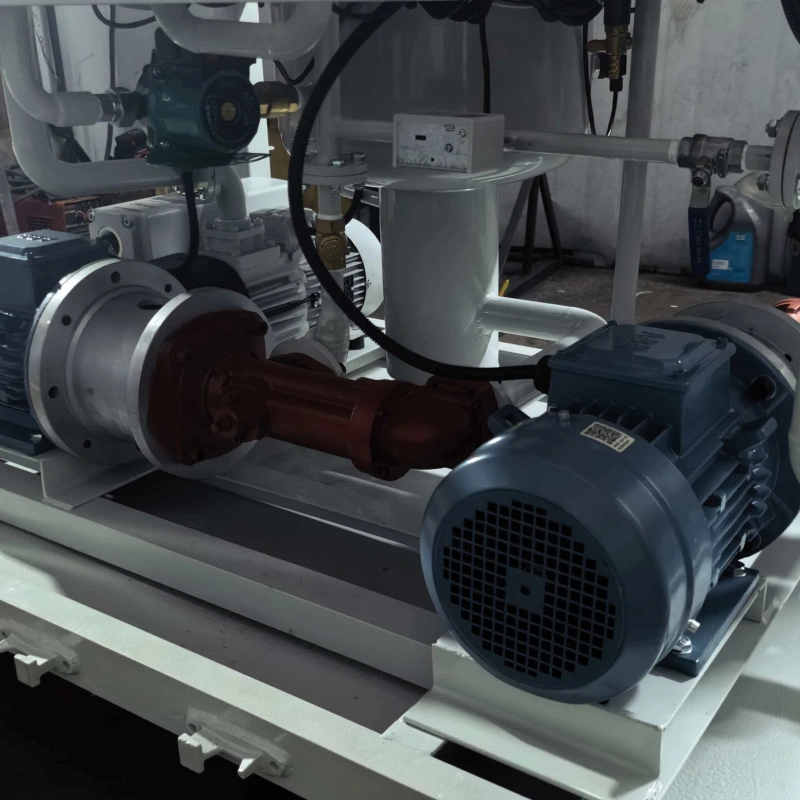

Inlet & Outlet Seim Screw Oil Pump

Share to:

Chat Directly with Our Experts

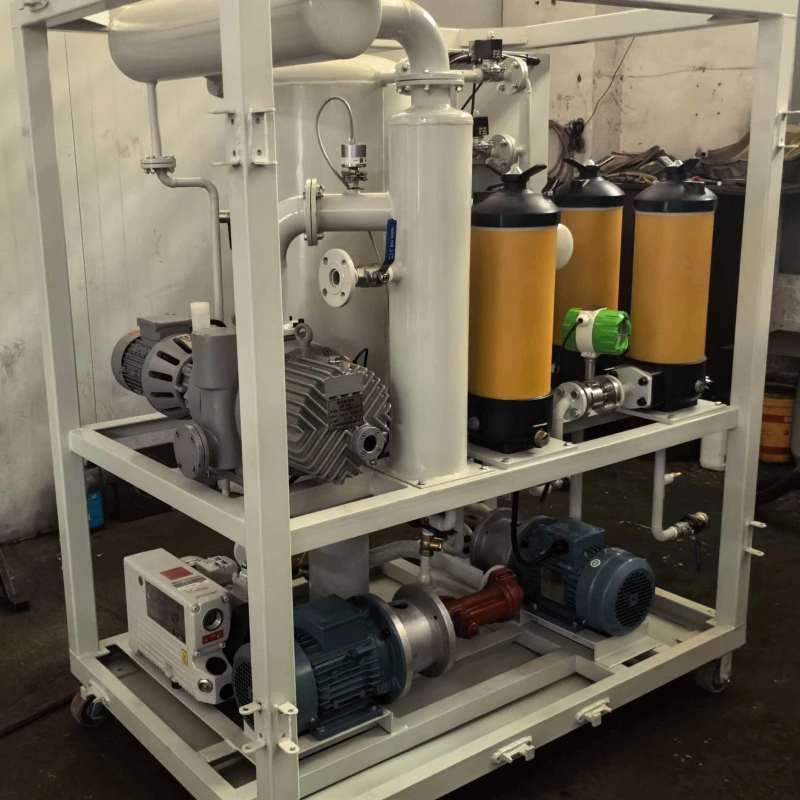

ZYD-20 Transformer Oil Filtration Machine

ZYD-20 Transformer Oil Filtration Machine is a high-performance, PLC-controlled purification system designed for the most critical applications in the power industry. At its core is an advanced double-stage high-vacuum system, capable of achieving an extreme vacuum of below 10 Pa, for the thorough removal of dissolved water, gases, and Combine with PALL Housing and its filter, more durable and functional in particles removing from transformer oil.

This robust machine serves as an all-in-one solution for vital on-site tasks, including:

Purifying heavily contaminated oil.
Vacuum oil filling.
Transformer degassing and evacuation.

ZYD-20 Transformer Oil Filtration Machine can equips trailer and enclosed box, ensures unmatched reliability for maintaining EHV/UHV transformers and other large-scale power equipment, guaranteeing operational excellence and extended asset life.

Advanced double-Stage High-Vacuum System: Incorporates a vacuum pump and booster pump to achieve an extreme vacuum below 10Pa, ensuring thorough dehydration and degassing.

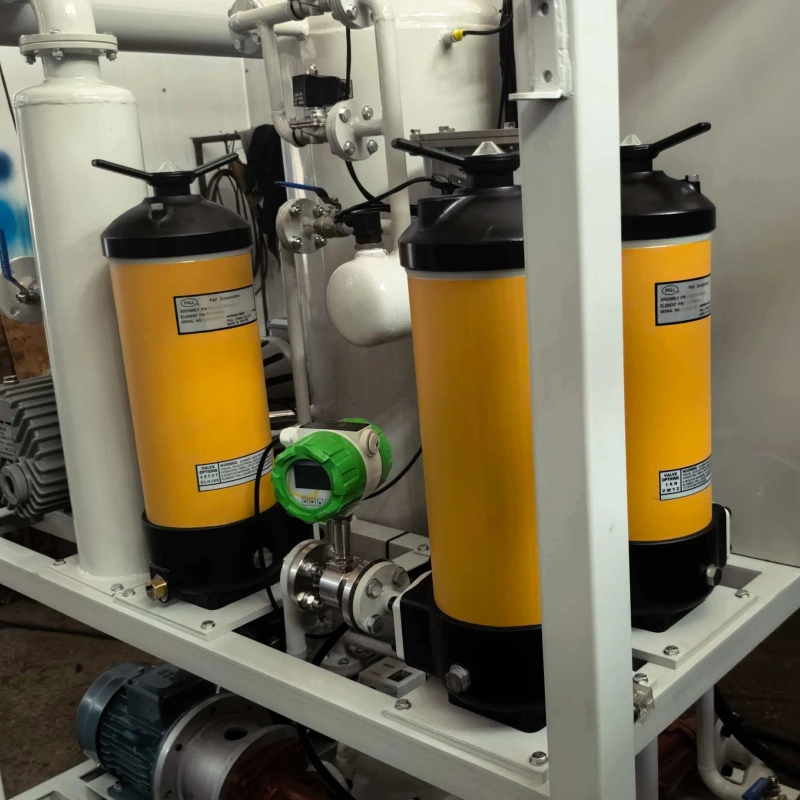

Comprehensive Multi-Stage Filtration: A three-stage precision filtration system with PALL Housing and PALL filter cartridges effectively removes sub-micron particles and solid contaminants.

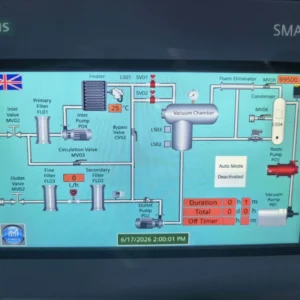

Full-Automation & Intelligent Control: Features a PLC-based control system for automatic operation, with real-time monitoring of oil temperature, vacuum, and pressure. Integrated anti-foaming and oil level control ensure safe, continuous 24/7 operation.
Robust & Versatile Design: Built for heavy-duty use with corrosion-resistant components, capable of handling heavy contamination and functioning as an all-in-one unit for oil purification, oil filling, degassing and transformer vacuum extraction.

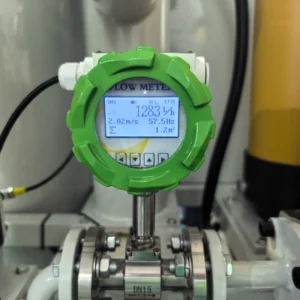

Customizable Configuration: Offers a range of optional parts to meet specific needs, including PPM moisture sensors, flow meters, weather-proof enclosures, and trailer mounts.

Eliminate Downtime with Unbreakable Reliability: Keep your most critical EHV/UHV assets online and protected. WEINENG ZYD-20 Transformer Oil Filtration Machine ensures your insulating oil meets the strictest standards, preventing costly, unplanned outages and extending transformer life by years.
Slash Operational Costs Through Unmatched Efficiency: The fully automated PLC system and continuous operation capability dramatically reduce labor costs and maintenance cycles, delivering a faster return on investment and a lower total cost of ownership.
Simplify Complex Operations with an All-in-One Platform: Consolidate multiple functions into one robust unit. Execute purification, vacuum oil filling, and transformer degassing on-site with a single machine, streamlining your workflow and reducing equipment investment.
Future-Proof Your Investment with Tailored Solutions: Our customizable options mean the system adapts to your unique site requirements, ensuring you pay only for what you need today, with the flexibility to meet the challenges of tomorrow.

Complete Oil Treatment: Transformer Oil Purifier + Vacuum pumping System

Our ZYD-20 Transformer Oil Filtration Machine clean the oil – our VPS vacuum pumping unit dries the transformer tank. Together, they ensure complete moisture protection for your transformers.
