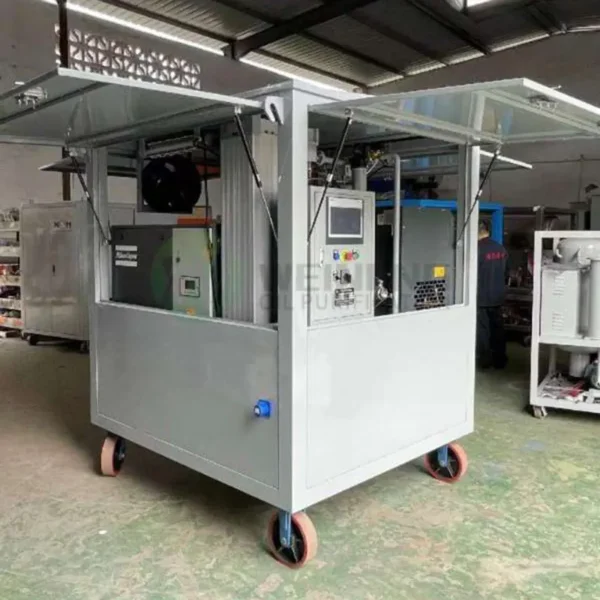

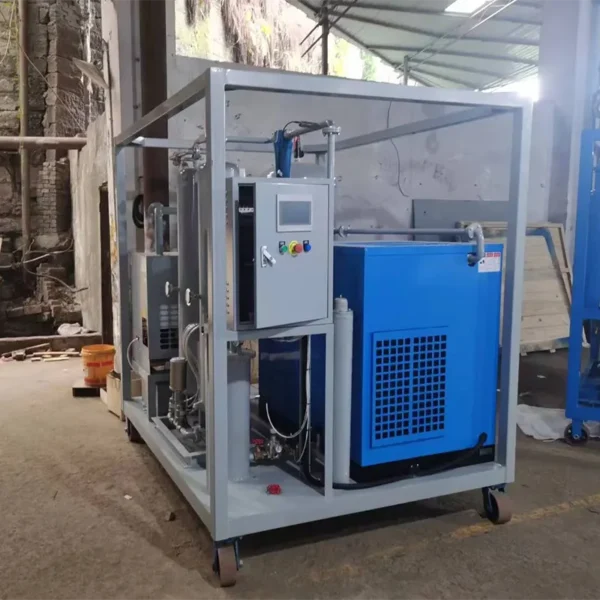

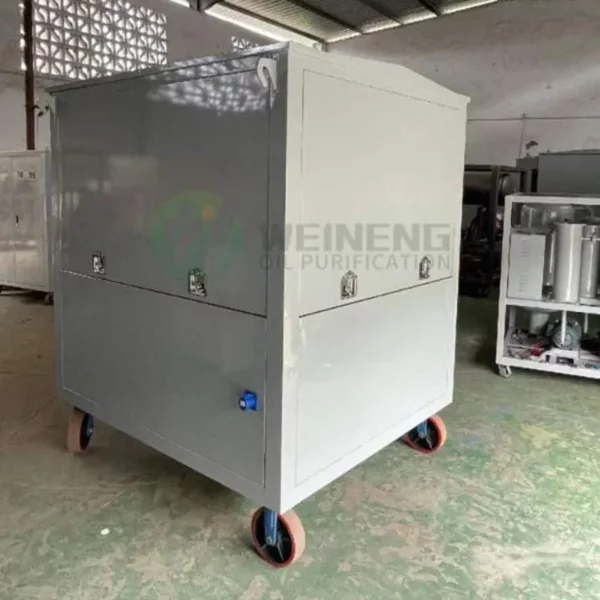

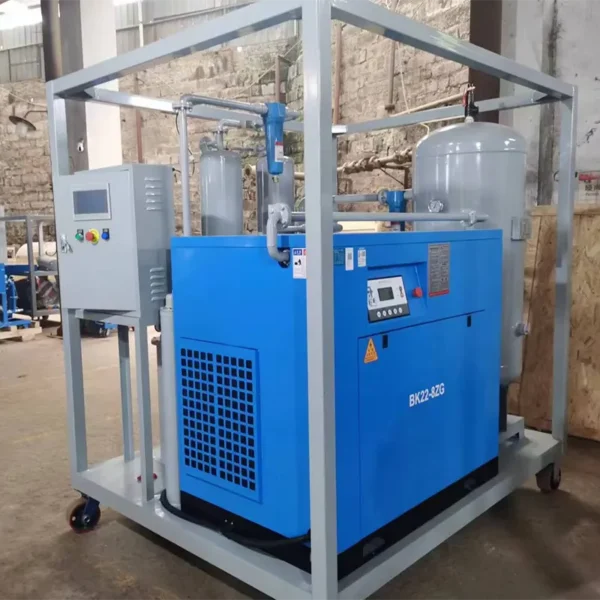

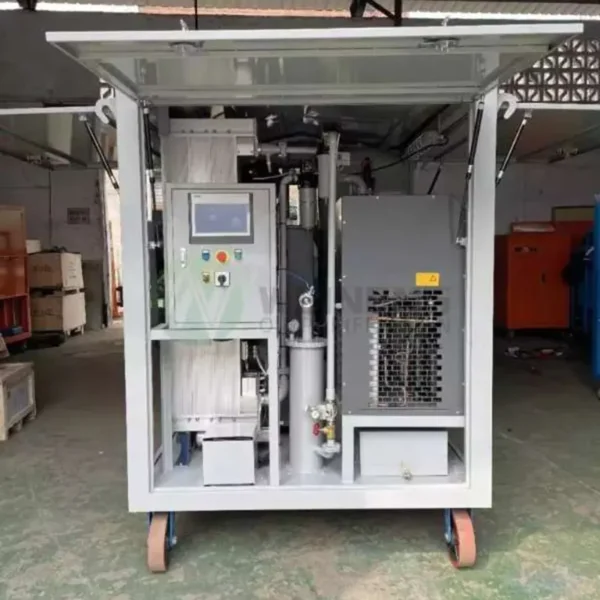

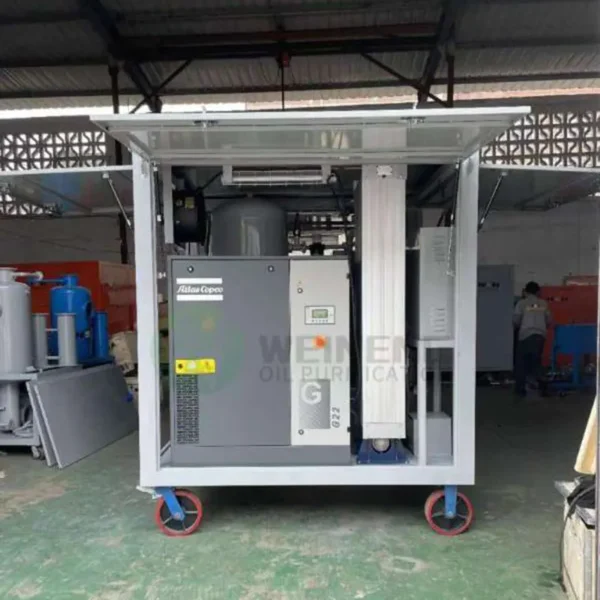

AD-120 Dry Air Generator
AD-120 Dry Air Generator is a state-of-the-art industrial drying system designed to deliver exceptionally dry air with a dew point as low as -70°C. This high-performance equipment operates with a power rating of 25KW and requires a three-phase three-wire 380V/50HZ(customizable) power supply, making it suitable for various industrial environments. With a working pressure range of 0.6~1.0MPa and adjustable air supply pressure from 0.01-0.1MPa, the Weineng AD-120 Dry Air Generator offers flexibility and reliability in demanding applications. The system is capable of delivering a gas supply volume of ≥200m³/h, ensuring efficient and continuous operation.
The Weineng AD-120 Dry Air Generator is specifically engineered for critical applications in power equipment maintenance and installation. It is ideally suited for use in transformers and reactors where maintaining internal dryness is crucial to prevent moisture damage to insulation materials.
Unlike traditional nitrogen drying methods, the Weineng AD-120 Dry Air Generator provides a safer, more economical, and more convenient solution. It ensures that workers can safely perform maintenance inside equipment without risk of oxygen deficiency.The generator is particularly valuable during overnight operations where equipment can be sealed and maintained with dry air pressure between 0.01MPa~0.1MPa, unaffected by external climate conditions. This makes the Weineng AD-120 Dry Air Generator an essential tool for power generation facilities, electrical substations, and industrial plants where moisture control is critical to equipment longevity and operational safety.
Key Features of Weineng AD Dry Air Generator
- Modular design integrating compression, freezing, and adsorption technologies
- Large area Duplex 3D Flash Vaporization Technology for fast water evaporation and degassing
- PLC intelligent controller with one-click operation for full automation
- Extremely low dew point output down to -70°C
- Multi-stage filtration system with maximum 0.01μm filtration accuracy
- Heat-free automatic adsorbent regeneration system
- Low regeneration gas consumption (less than 5%)
- Fully automatic drainage system
- Comprehensive protection system including phase mismatch, voltage protection, and pressure safety
- Equipped with dust removal gun for field maintenance
Technical Specifications of Weineng AD Dry Air Generator
| Parameter | Specification |
|---|---|
| Gas Supply Volume | ≥ 120m³/h |
| Gas Supply Dew Point | ≤ -70°C |
| Working Pressure | 0.6~1.0MPa |
| Air Supply Pressure | 0.01-0.1MPa (adjustable) |
| Filtering Accuracy | 0.01μm |
| Working Environment | Indoor, temperature below 40°C, no condensation |
| Power Supply | 380V/50HZ/3Phase(Customizable) |
| Power | 25KW |
| Overall Dimensions | Depends on machine capacity |
Key Parameters
- Model: AD-120 Dry Air Generator
- Gas Supply Volume: ≥ 120m³/h
- Dew Point: ≤ -70°C
- Working Pressure: 0.6~1.0MPa
- Air Supply Pressure: 0.01-0.1MPa
- Filtration Accuracy: 0.01μm
- Power Supply: 380V/50HZ/3Phase(Customizable)
- Power Consumption: 25KW
- Operating Temperature: Below 40°C
- Design: Modular system with five integrated components
Application Areas
The Weineng AD-120 Dry Air Generator is essential for various industrial applications including:
- Transformer installation and maintenance
- Reactor drying and preservation
- Power equipment maintenance
- Replacement for nitrogen drying systems
- Overnight equipment preservation
- Electrical substation maintenance
- Power generation facilities
- Industrial plants requiring moisture control
- Equipment requiring low dew point dry air

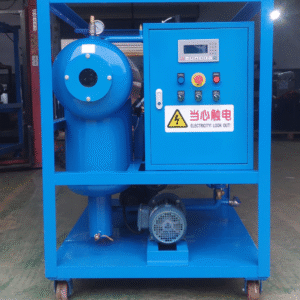

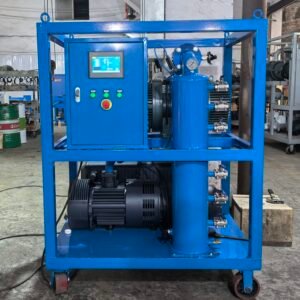

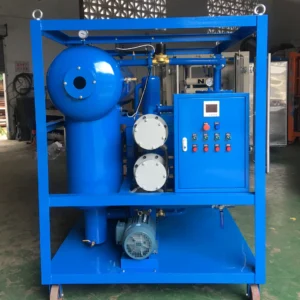

We strongly recommend you our equipments used in power sector, like VPS series Vacuum Pumping Unit, ZYD Series Two Stage Dielectric Oil Filtration Machine, IIJ-II Oil Breakdown Testing Equipment etc. Friendly reminder: Contact us now for a full oil solution proposal or competitive price!
