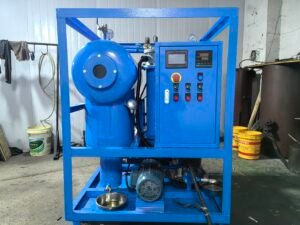

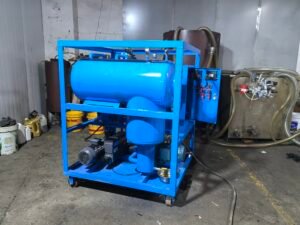

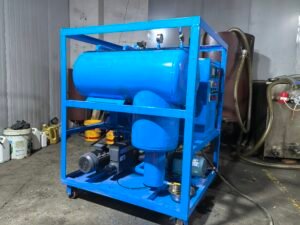

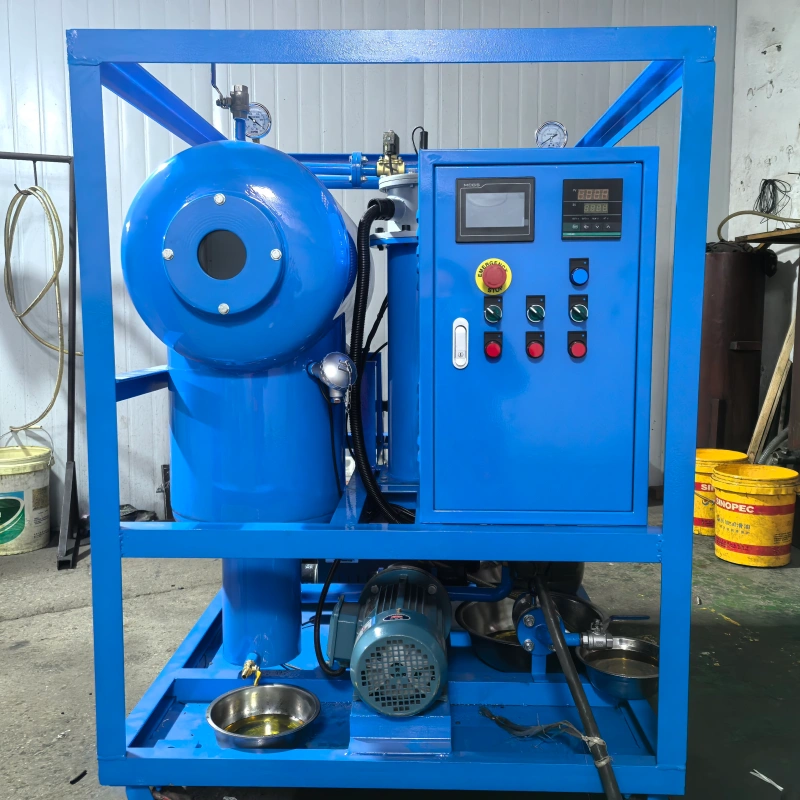

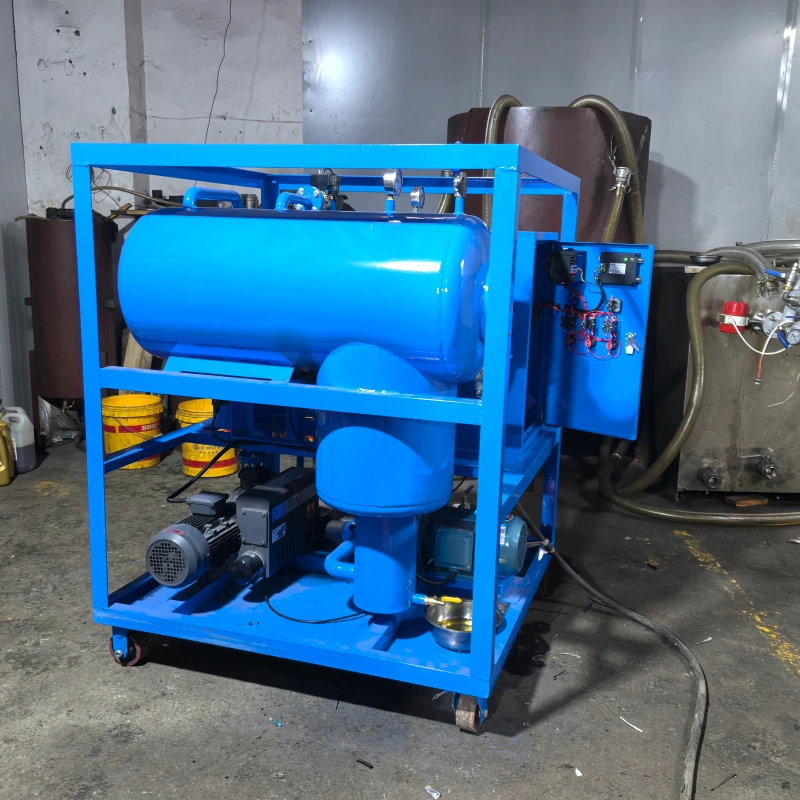

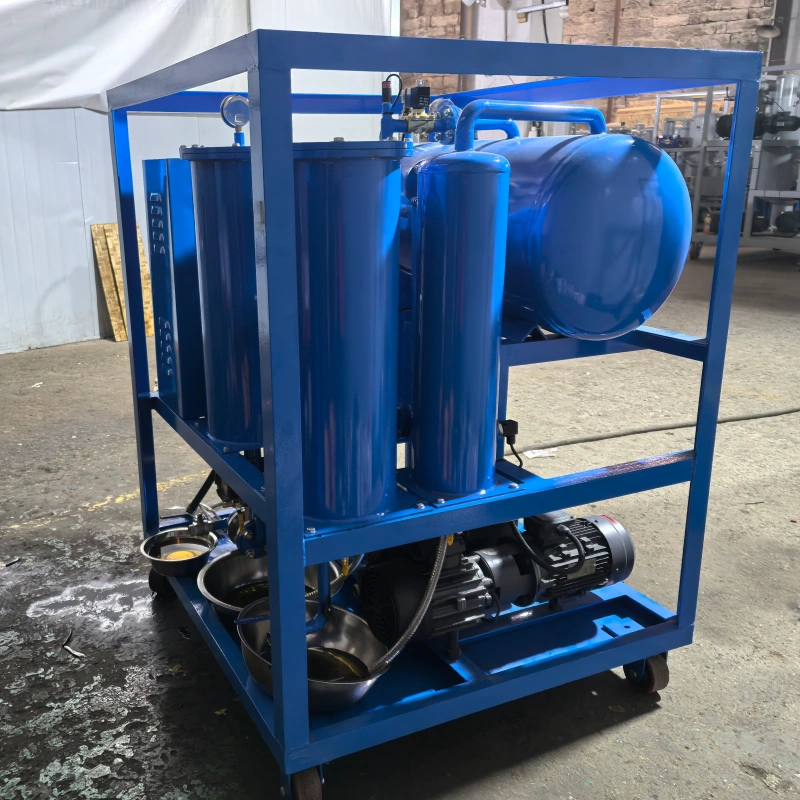

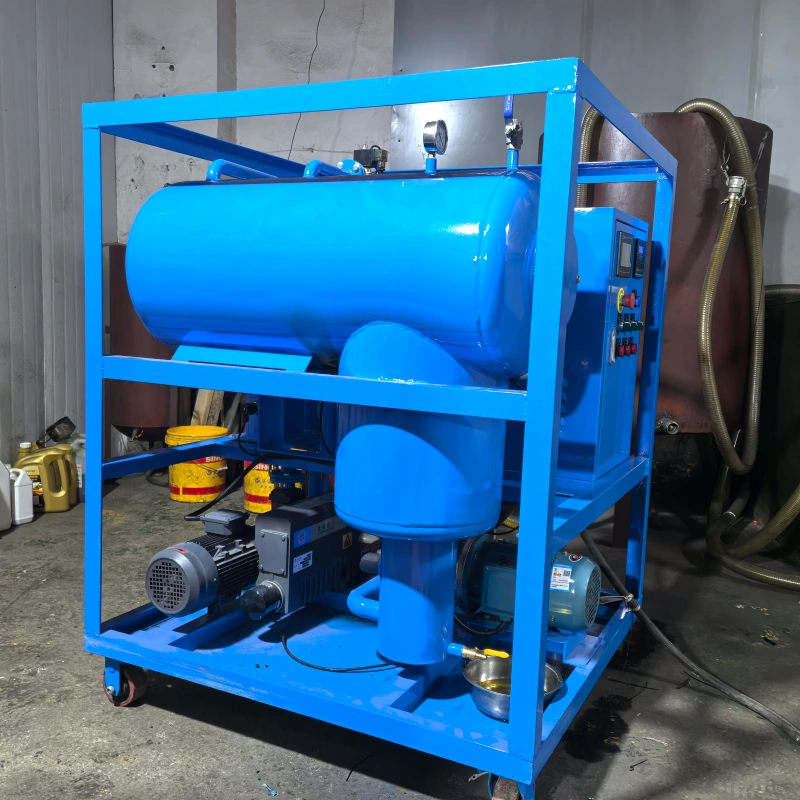

ZY-20 Highly Vacuum Transformer Oil Purification Machine

Model: ZY-20 Highly Vacuum Transformer Oil Purification Machine
Rated Voltage: 380V, 50HZ, 3Phase(Customizable)
Flow Rate: 20 L/min
Working Vacuum: -0.06 ~ -0.095 MPa
Working Temperature: 40-70°C
Water Content After Treatment: < 5 ppm
Particle Removal Rating: ≤ 3 μm
Breakown Voltage: ≥ 60 kv
Noise Level: < 70 dB
Warranty: 18months
Inlet EE364(E+E brand) Moisture Sensor

Share to:

Chat Directly with Our Experts

ZY-20 Highly Vacuum Transformer Oil Purification Machine

ZY-20 Highly Vacuum Transformer Oil Purification Machine is a high-efficiency and cost-effective solution for the dehydration and purification of insulating oil and industrial lubricants. This robust oil purification machine utilizes a powerful single stage vacuum system to rapidly remove free and dissolved water, dissolved gases, and solid contaminants. It is an ideal oil filtration equipment for power plants, substations, and industrial facilities seeking to maintain oil cleanliness, extend oil service life, and protect critical assets like transformers and high-voltage equipment.

Efficient Single-Stage Vacuum Dehydration: The core vacuum dehydrator creates a stable, high vacuum environment to effectively evaporate and extract water and gases from the oil, significantly improving the dielectric strength of insulating oil.
Multi-Stage Precision Filtration: Equipped with a progressive filter system—including pre-filters and fine filters—to capture solid particles, sludge, and other insoluble impurities, ensuring thorough contaminant removal.
Robust Construction & Continuous Operation: Built with a carbon steel reservoir and corrosion-resistant components, this oil treatment plant is designed for reliable, continuous duty in demanding environments.
User-Friendly Control & Safety Features: The system features an intuitive control panel with real-time monitoring of oil temperature and vacuum degree, alongside automatic safety controls for worry-free operation.

Restore and Protect Oil Performance at an Optimal Cost: Achieve a rapid return on investment by effectively removing water and particles, which prevents oil degradation, slows acid formation, and maximizes the lifespan of your transformer oil, insulation oil etc.
Enhance Equipment Reliability and Reduce Downtime: Proactive oil maintenance with the ZY-20 Highly Vacuum Transformer Oil Purification Machine prevents common failures caused by contaminated oil, such as transformer insulation breakdown and pump wear, ensuring uninterrupted operations.
Simplify Your Oil Maintenance Regimen: This all-in-one oil cleaning machine consolidates multiple processes into a single, easy-to-operate unit, reducing the need for costly off-site reclamation and minimizing labor costs.
A Foundational Solution for Diverse Applications: From maintaining power transformer oil to purifying industrial lubricants, the ZY-20 Highly Vacuum Transformer Oil Purification Machine provides a versatile and reliable foundation for any plant’s oil purification strategy.

Complete Oil Treatment: Transformer Oil Purifier + Vacuum pumping System

Our transformer oil purifiers clean the oil – our VPS vacuum pumping units dry the transformer tank. Together, they ensure complete moisture protection for your transformers.

Why Pair Them:
