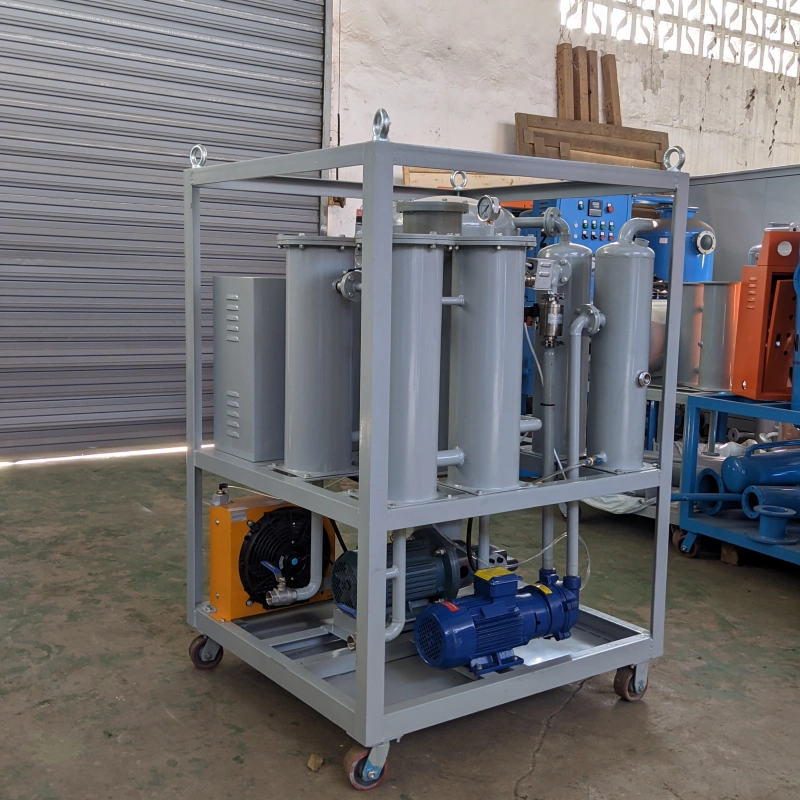

TYA-50 Vacuum Hydraulic Oil Purifier

TYA-50 Vacuum Hydraulic Oil Purifier is professionally engineered for industrial lubricants including turbine oil, hydraulic oil, gear oil, and compressor oil. By integrating optimized dehydration, degassing, and three-stage precision filtration technologies, it efficiently removes water, free and dissolved gases, wear metals, impurities, and other solid contaminants from degraded lubricants.

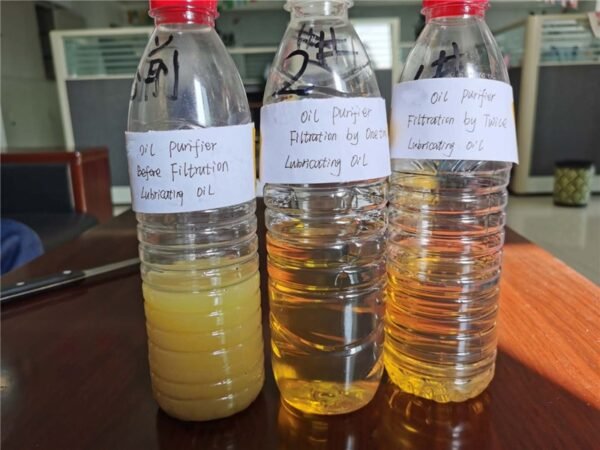

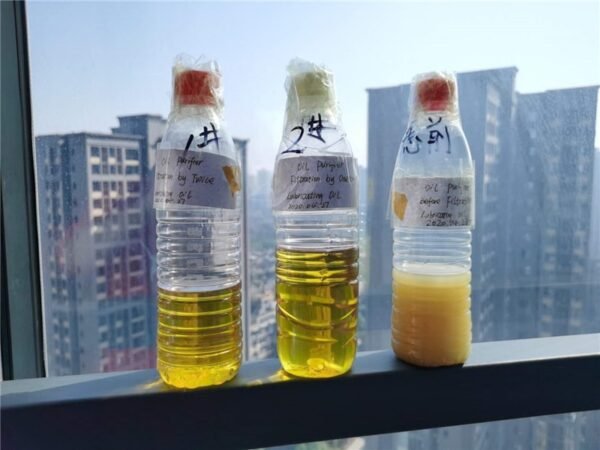

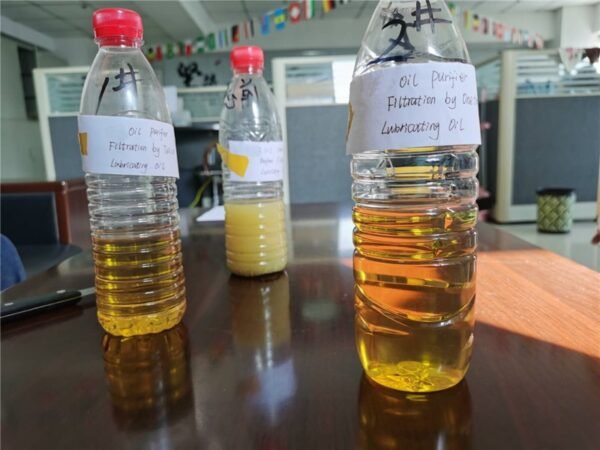

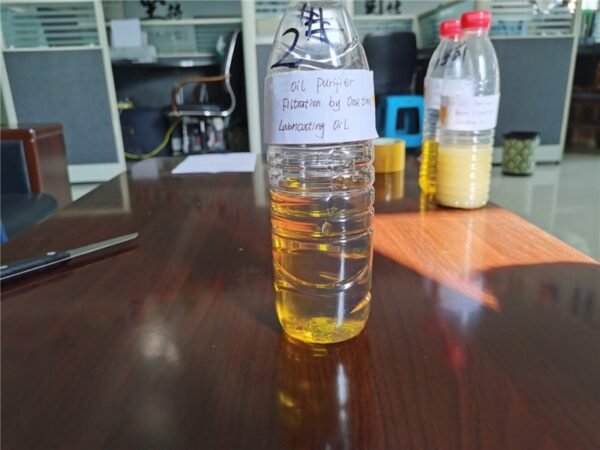

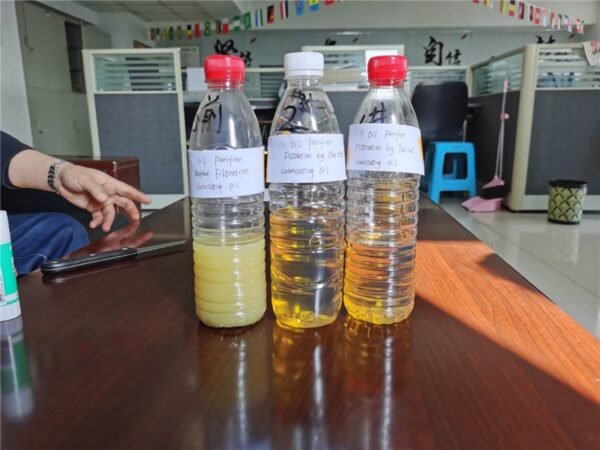

After treatment with the TYA-50 Vacuum Hydraulic Oil Purifier, the lubricating oil regains its original physical and chemical properties, with significantly improved cleanliness and viscosity index. This process effectively restores lubricity, reduces component wear, and prevents sludge formation. As a result, it substantially extends the service life of both the oil and the critical machinery it serves, while minimizing unscheduled downtime and maintenance costs.

Beyond its primary purification function, the WEINENG TYA-50 Vacuum Hydraulic Oil Purifier can also be utilized for online conditioning of operating oil systems, new oil purification prior to first-time filling, and routine maintenance filtration. Its robust design ensures reliable performance in demanding industrial environments such as power generation, manufacturing plants, and marine applications.

Key Applications:

• Purification and regeneration of various types of industrial lubricating oils

• Online or offline conditioning of turbine, hydraulic, and gear oil systems

• Pre-filling treatment of new lubricants to ensure initial cleanliness

• Prolonging oil service life and protecting expensive industrial machinery

Product Features

• Filtration System: Precision filter elements are adopted, which has strong ability to filter impurities. The large-area and deep-level precision filter element can remove fine particles in the oil. With Three stage filters, it can effectively protect the filters, prolong the lifetime.
• Super strong demulsification ability, advanced and unique degassing and dehydration system, using trinity evaporation technology, multi-level oil-water separation technology, quickly separate a large amount of water in oil, and can also remove trace water and gas in oil.
• Advanced medium endothermic condensation system, automatic condensate separation device, automatic constant temperature control, infrared liquid level control, automatic overpressure shutdown protection device, backwash function and high-quality equipment accessories. To ensure the high-performance operation of the equipment, the operation is simple, safe and reliable.
• The infrared liquid level control system completely avoids the phenomenon of oil running, and can completely realize unattended online oil filtering. The running status can be observed through the indicator light.
• Heating system is the optimized pipeline design, to ensure the unique heating and stable oil temperature. Avoid overheating and carbonization of oil.
• Equipped with comprehensive protection mechanism, such as power protection, pressure protection, motor overload protection. If any protection mechanism is triggered, the machine will stop working automatically.
• High-quality filter elements and link sealing materials with corrosion resistance, high temperature resistance, high mechanical strength, etc. are selected. The vacuum pump and oil transfer pump are of high-quality brands, and the seals are treated with professional technology, no leakage, low operating noise, and long service life.

Product Specifications

Key Parameters

• Model: TYA-50 Vacuum Hydraulic Oil Purifier
• Rated Voltage: 380V, 50HZ, 3Phase(Customizable)
• Flow Rate: 50 L/min
• Working Vacuum: -0.06 ~ -0.095 MPa
• Working Temperature: 40-70°C
• Water Content After Treatment: < 50 ppm
• Particle Removal Rating: ≤ 10 μm
• Noise Level: < 70 dB
• Warranty: 18months

Application Areas

Our TYA-50 Vacuum Hydraulic Oil Purifier is engineered to meet the demanding needs of various industries, ensuring optimal machinery performance, extended oil life, and reduced operational costs.

1. By Industry Sector

• Power Generation

  • Gas & Steam Turbines: Maintaining the purity of turbine oil to protect precision bearings and control systems.

  • Hydroelectric Plants: Purifying gear oil in governors and gearboxes to ensure reliable power output.

  • Power Plant Auxiliaries: Conditioning lube oil for fans, pumps, and critical auxiliary equipment.

• Manufacturing & Heavy Industry

  • Metal Processing & Mills: Purifying hydraulic and gear oils in rolling mills, forging presses, and continuous casters to withstand extreme conditions.

  • Mining & Quarrying: Ensuring the reliability of gearboxes, hydraulic systems, and bearings in heavy-duty excavators, crushers, and conveyors.

  • Cement & Steel Plants: Protecting critical machinery in harsh, high-contamination environments.

• Marine & Offshore

  • Marine Vessels: Treating cylinder oil, system oil, and gear oil in main engines, auxiliary engines, and thrusters onboard ships.

  • Offshore Platforms: Maintaining the integrity of hydraulic and lube oils in cranes, power packs, and other essential equipment in hazardous zones.

• Transportation & Infrastructure

  • Railway: Purifying gear oil in locomotive and railcar transmissions, ensuring safe and efficient operation.

  • Aviation Ground Support: Conditionining oils for ground power units and auxiliary systems.

• Oil & Gas

  • Drilling Rigs: Purifying hydraulic oil on mud pumps, top drives, and draw-works.

  • Refineries & Pipelines: Maintaining the cleanliness of turbine and compressor oils for pumps, gas turbines, and compressors.

2. By Application Type

• On-Site Maintenance: Portable units for periodic purification of oil in large reservoirs during planned maintenance shutdowns.

• Online Continuous Filtration: Fixed systems plumbed into machinery for real-time, continuous oil conditioning during operation.

• New Oil Treatment: Pre-filtration of new oil before initial filling to ensure inherent cleanliness and prevent premature component wear.

• Oil Recycling & Reclamation: Restoring heavily contaminated or oxidized oil to a reusable condition, reducing disposal costs and environmental impact.

3. By Target Equipment

• Turbines & Generators

• Hydraulic Systems & Presses

• Industrial Gearboxes & Compressors

• Bearings & Circulating Oil Systems

• Diesel Engines & Power Units
