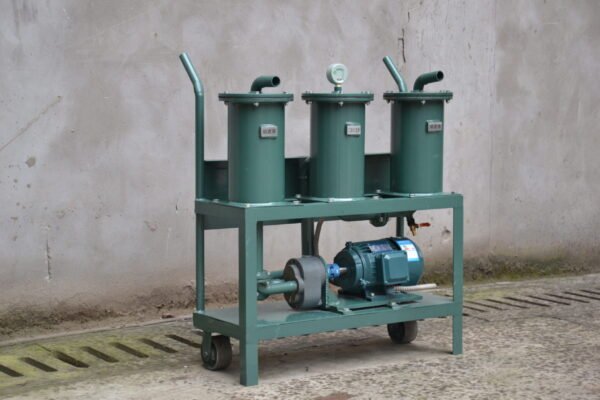

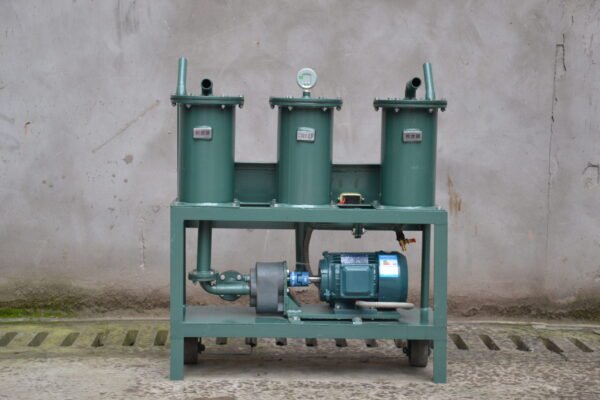

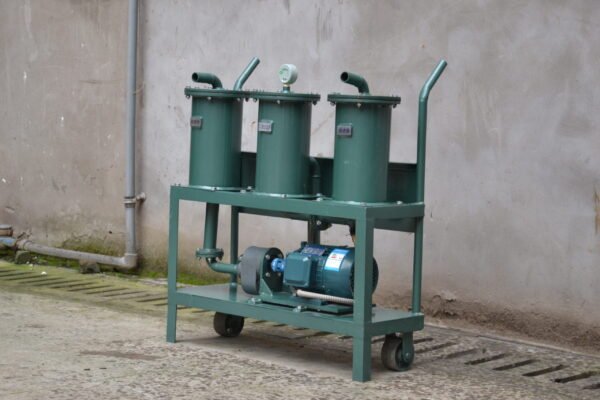

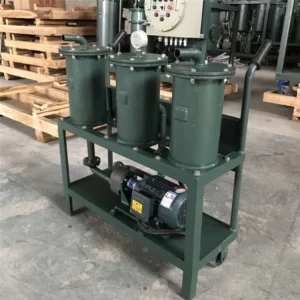

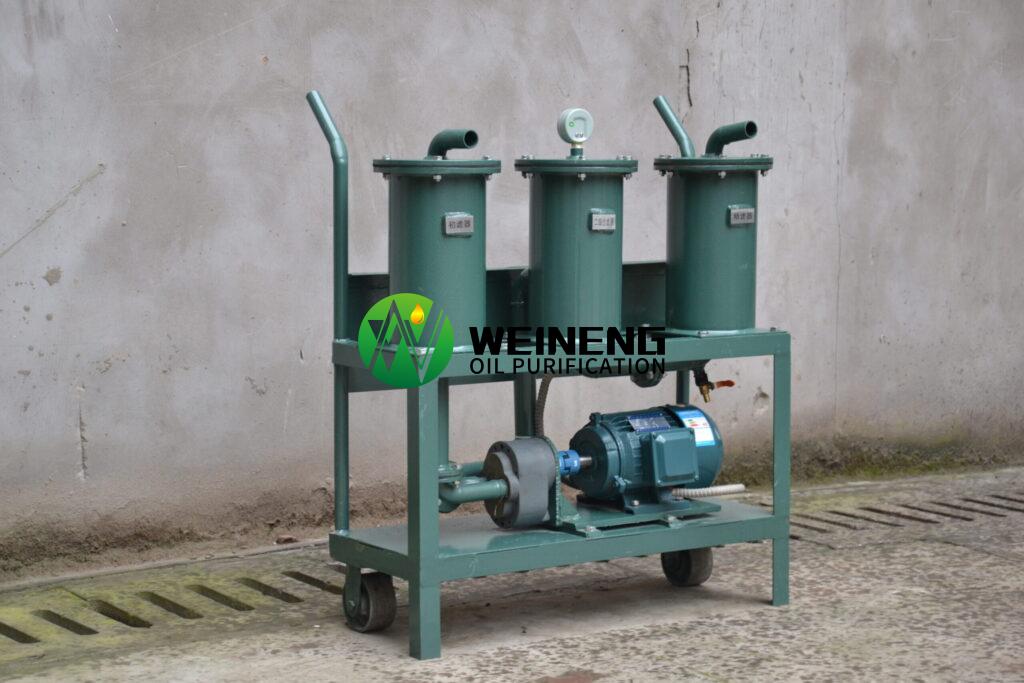

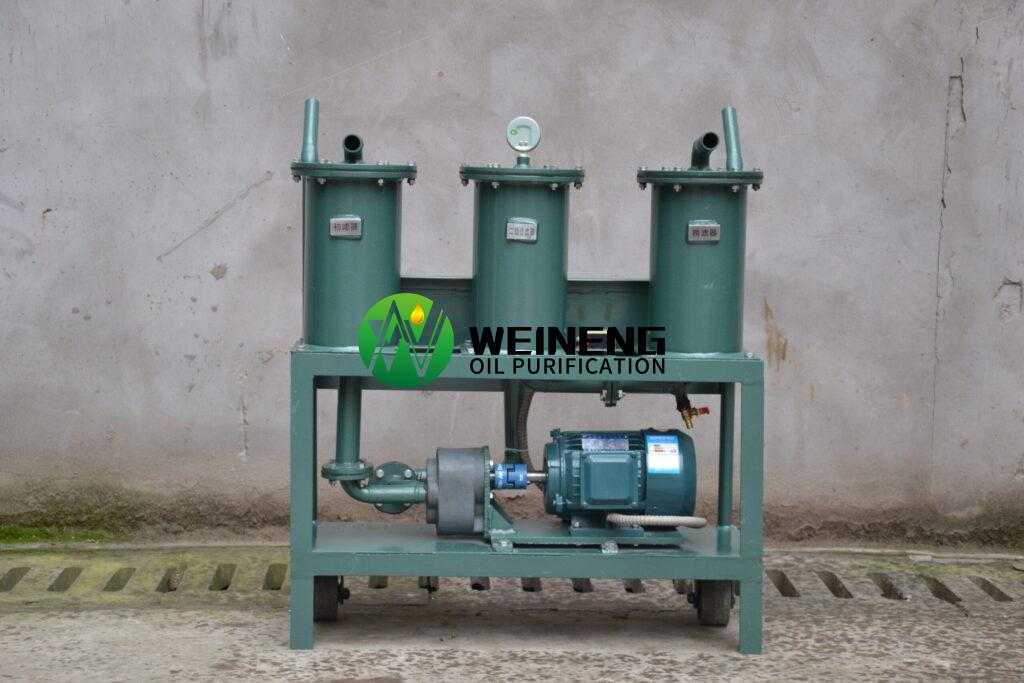

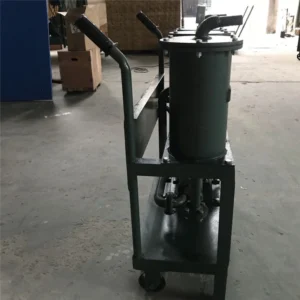

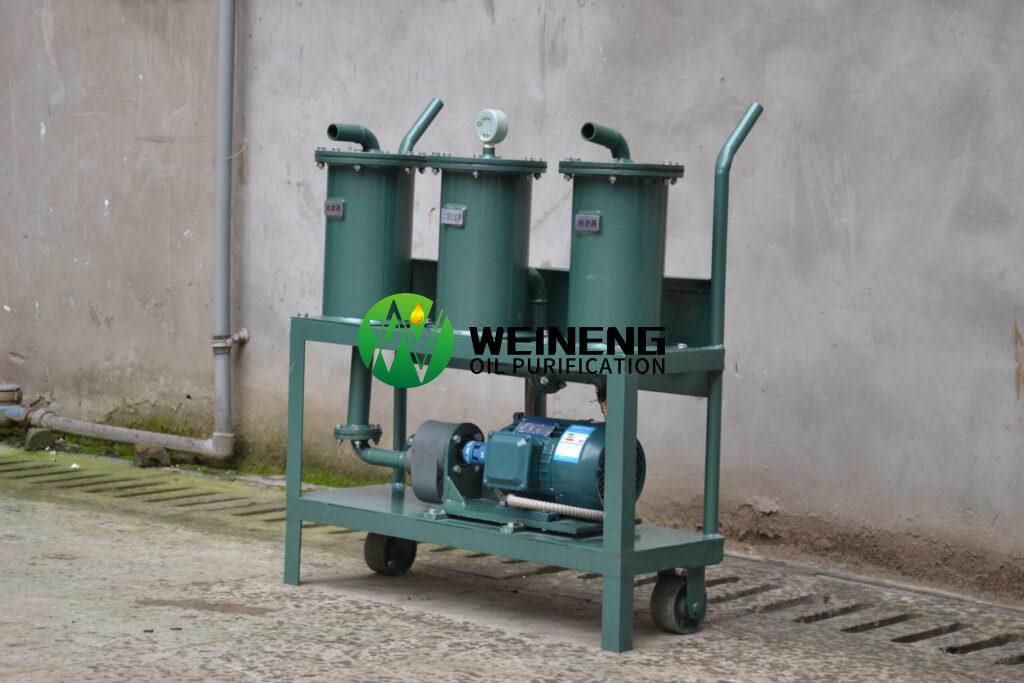

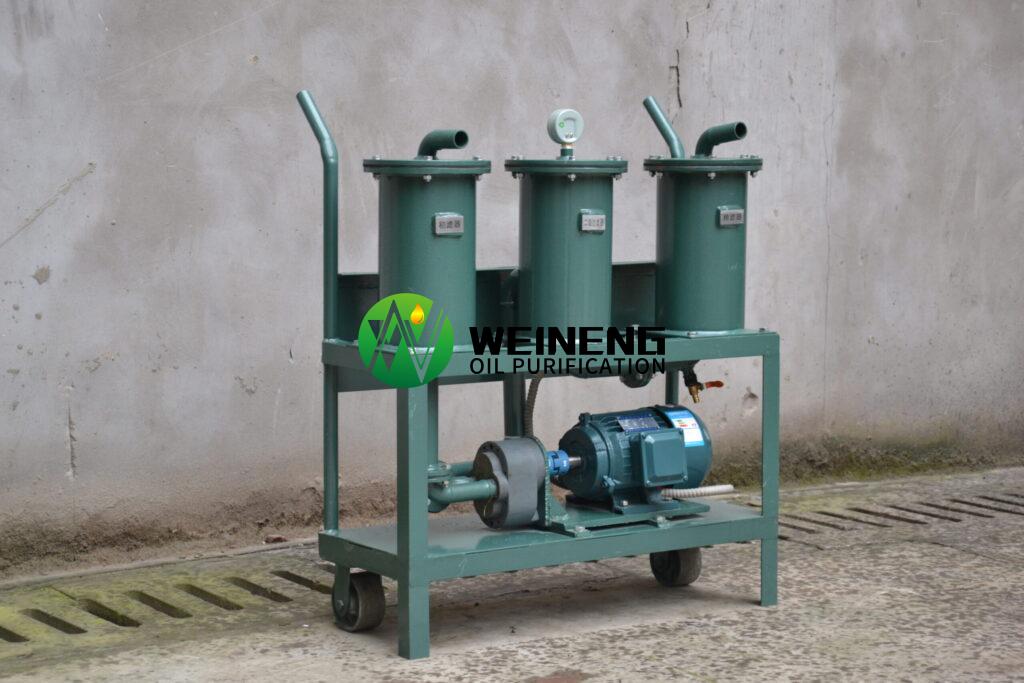

JL-50 Portable Oil Purifier
JL-50 Portable Oil Purifier can do precision filtering, remove the tiny or big sized impurity, metal particles, sediments, sludge, residue from used cooking oil, fried food oil, shortening oil, palm oil, Coconut oil, vegetable shortening oil, sunflower oil, groundnut oil, olive oil, trench oil, swill oil and animal oil, edible rapeseed oil, tea oil, peanut oil, and also various high-precision lubricant oil, lube pump oil, phosphate ester oil, fire resistant hydraulic oil, turbine oil, gear oil, compressor oil, various cutting fluids, heat treatment oil, and different industrial oil.
WEINENG JL-50 Portable Oil Purifier is also used for oil tranferring, oil filing for oil tanks.

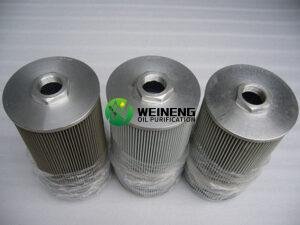

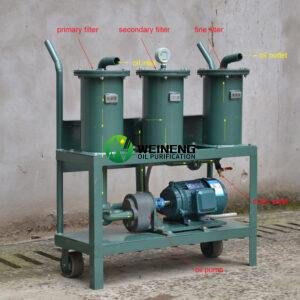

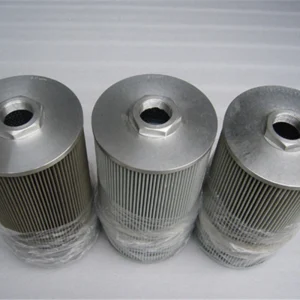

- JL-50 Portable Oil Purifier is usually equips three-stage filters, also can equip four or five stage filters as per user’s requirements.
- According to the treated oil usages, you can choose different machine body (carbon steel or stainless steel material optional)
- If your oil is high viscosity, we advise you choose a heater.
- If your oil contains metal particles, we advise you choose magnetic filter elements
- If your oil contains too much water content,we suggest you choose vacuum oil purifier (Please consult with our salesman for your different request)
Light weight, easy operation, it can be used as oiling machine for long distance and high-lift oiling works.
Product Features
- Using high-quality filter, pollutant carrying capacity, corrosion resistance, high temperature resistance, high mechanical strength, high precision filtering,
- The oil can get to the new oil standard after filtering the mechanical impurities in it,
- Provide the best performance and the most compact design,
- High efficiency, low noise, long life With the function of oil filling & flushing,oil drawing.
Technical Specifications of Weineng JL-50 Portable Oil Purifier
| Parameter | Specification |
|---|---|
| Model | JL-50 Portable Oil Purifier |
| Flow Rate | 10l/m – 300l/m |
| Working Pressure | 0.4 MPa |
| Lift | 5m – 15m |
| Cleaness | NAS 6 |

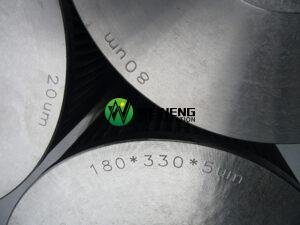

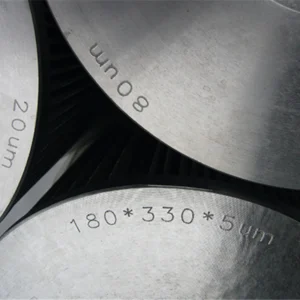

| Filtration Precision | 1um,3um ,5um(optional) |
| Power Supply | 380V/50HZ/3Phase(Customizable) |
| Power | 0.75kw – 6kw |
| Overall Dimensions | Depends on machine capacity |
Key Parameters
- Model: JL-50 Portable Oil Purifier
- Flow Rate: 50 l/m
- Working Pressure: ≤ 0.4 Mpa
- Lift: 8 m
- Cleaness: NAS 6
- Fine filter: 5 μm
- Power Supply: 380V/50HZ/3Phase(Customizable)
- Power Consumption: 0.75 KW
Application Areas
The JL-50 Portable Oil Purifier delivers professional-grade filtration in a compact, mobile design. Engineered for versatility, it efficiently removes solid contaminants—from large impurities to fine metal particles—across a wide range of oil types, ensuring cleaner fluids and extended service life.
Core Functions
-
Precision Filtration: Multi-stage filtration system (3–5 stages customizable) effectively removes impurities, metal debris, and sediments.
-
Oil Transfer & Filling: Doubles as an efficient oil transfer and filling pump for tanks and machinery.
-
Adaptable Configuration: Optional heaters for high-viscosity oils, magnetic elements for metal particles, and vacuum modules for water removal.
Applicable Oils
-
Edible Oils: Cooking oil, palm oil, sunflower oil, olive oil, rapeseed oil, and animal fats.
-
Industrial Lubricants: Hydraulic oil, turbine oil, gear oil, compressor oil, and heat treatment oil.
-
Specialty Fluids: Phosphate ester fire-resistant fluids, cutting fluids, and other high-precision industrial oils.
Typical Use Cases
-
Food processing plants for recycling frying oils.
-
Manufacturing facilities for maintaining machinery lubricants.
-
Power plants and industrial sites for on-site oil transfer and purification.
-
Workshops handling high-viscosity or water-contaminated oils.
For reliable, portable oil filtration, the JL-50 Portable Oil Purifier. When your application demands stepped-up purification—removing water, gases, and fine particles—discover our advanced ZYD (Transformer Oil Purification Machine) and TYA (Lubricant Oil Filtration Machine) Purification Systems. Friendly reminder: Contact us now for a full oil purication solution proposal or competitive price!
